Fusion FX EDGE
search
  • Fusion FX EDGE

Fusion FX EDGE

Fusion FX
  • New Edge Generation
  • The Unrivaled Sensitivity
  • The unrivaled Fusion FX is ideal for chemiluminescence, bioluminescence and UV fluorescence applications.

Cena na dotaz

0 Kč Vč. DPH

0 Kč bez DPH

Smart Inside

  • Auto-exposure and auto-focus
  • Automatic light illumination control
  • Protocol driven image acquisition
  • Smart sensors to identify the sample distance
  • Fully motorized lens and filter wheel

Ideal For Quantification

  • Reproducible and comparable quantification data
  • ImageMaster™ technology to obtain the optimum image for quantification
  • Scientific TIFF file or proprietary file format
  • Clarity™ technology for razor sharp band revelation without affecting data integrity

Long Lasting High Quality

  • Stainless steel, aluminium and steel darkroom for the best robustness
  • Proven camera robustness
  • White light LED for thousands of hours of use
  • Interchangeable transilluminator

The Industry Standard

  • Quoted in hundreds of publications
  • Better sensitivity than a film
  • One click to get the image
  • Upgradeable to IR and visible fluorescence
  • CFR21 Part 11 ready

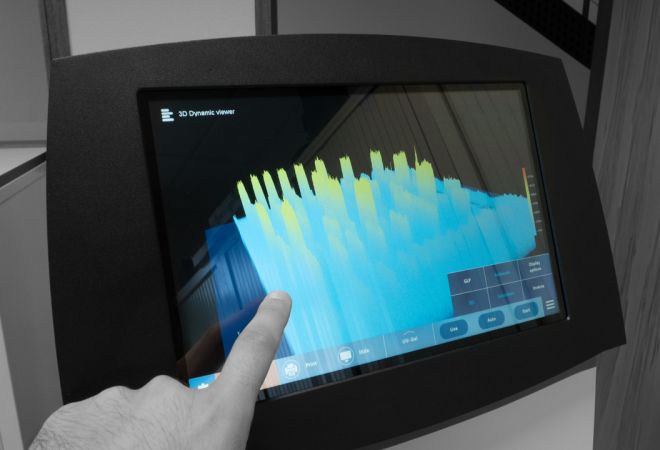

Intuitive Software

The FUSION FX software has rich features and guides you into the advanced functions in a very ergonomically designed user interface. The simple and self-understandable menu is ideal in a multi-user environment.

Designed by molecular biologists the software is very easy to use: juts one click is necessary to get the optimum Western Blot image.

Your Applications At Your Fingertips

  • UV Pad for DNA and RNA gels and fluorescence stain imaging:
    Ethidium Bromide, Sybr-Safe, Sybr-Green, Gel-Red, Gel-Green, Sybr-Gold, GFP, Pro-Q Emerald, Sypro Ruby, FITC, DAPI…
  • White Pad or white light conversion screen for colorimetric stained protein gels, X-Ray film, autorads, SSCP gels, colony dish and flask imaging and other EPI white light applications:
    Coomassie Blue, Silver Stain, Ponceau S Red, Copper stain…
  • Blue Pad or blue light conversion screen for DNA/RNA detection (avoid “nicking” DNA):
    Sybr-Safe, Sybr-Green, eGFP…
krypton alexafluo 568 sypro ruby irdye 800
INVIVO-LUCIFERASE    QDOT-565                    SYBR-GREEN                SYBR-GOLD
invivo luciferase qdot 565 sybr green sybr gold
PETRI-DISH-LUCIFERASE
petri dish luciferase
MAGSTER™ TECHNOLOGY

IMAGE MASTER™ ASSISTANT

The Fusion custom made V.084 lens combines sensitivity and optical performance for very faint light conditions. The optical system includes ultra-low dispersion components to enhance the sensitivity and aspheric elements to deliver consistently sharp images. The V.084 lens has a focusing distance of only 25cm to provide unrivaled sensitivity, clarity and image quality.

FUSION V.084 lens. Aperture f:0.84                                Competitor 1. Aperture f:0.95

Competitor 2. Aperture f:1.2                                        Competitor 3. Aperture f:2.4
HIGH SENSITIVITY READING™
The aim of the Fusion is to maximize the signal and to minimize the noise to achieve the best signal to noise ratio for the lowest limit of detection.

Thanks to our High Sensitivity Reading (HSR) technology, the Fusion reduces the various sources of noise to the lowest floor level and the signal can stand out from the surrounding background. The figures 5 and 6 are a comparison of weak chemiluminescence signal images showing the sensitivity benefit of the Fusion HSR technology face to a competitive system. The HSR technology allows to reach the lowest limit of sensitivity

Fusion’s High Sensitivity Reading (HSR) is a unique technology which delivers ultra-low noise and high sensitivity without altering the raw image data. Thanks to a camera modular design, a dual amplifier architecture and a complete control of the electronic components, the camera noise is reduced to a fraction. The HSR technology is a camera “on-head” built-in technology.

During the light exposure, the non-necessary camera components are shut down. Once the exposure time is over, the camera components are automatically turned back. The shut-down process during the image exposition reduced the camera noise, resulting in a better chip capacity to collect the signal.

Competitor 1 -10°c                                              Competitor 2 -20°c


Competitor 3 -30°c                                          FUSION HSR™ Technology

At same exposure time with a LED plate standard, the HSR technology provides a better sensitivity by reducing the noise ground level. By keeping the background to its lowest floor level, the very faint signal can easily be detected and quantified.
